GTFI · Great Third Front Industry Alliance
The alliance spirit originated from the national Great Third Front Construction period (1964–1980s), inheriting decades of industrial experience, adhering to strict machining standards and craftsmanship. We provide reliable mechanical manufacturing and precision machining services to global industry.
Electric Motors
Industrial IE3/IE4 · Micro DC · Stepper · Brushless · Geared
CE
RoHS
ISO9001
IE3/IE4
IP55/IP65
From $1.50
MOQ: 1 unit (sample available)
GTFI offers a complete range of electric motors – from heavy‑duty industrial motors (0.75‑500kW, IE3/IE4) to precision micro motors for consumer electronics, robotics, and automation. Our portfolio includes DC brushed, geared, vibration, coreless, brushless, and stepper motors, all manufactured with high‑grade materials (pure copper windings, epoxy resin rotors, and corrosion‑resistant coatings).
Whether you need a powerful motor for pumps, fans, and conveyors, or a compact, quiet motor for smart locks, drones, and beauty devices, GTFI delivers reliable performance, long service life, and full compliance with international standards.

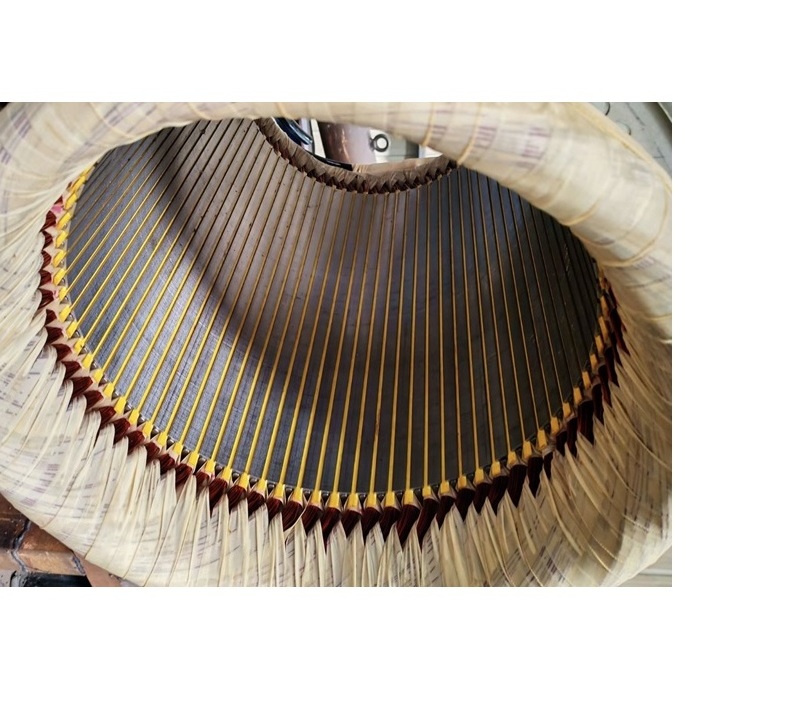

Industrial Electric Motors – IE3/IE4 Premium Efficiency (0.75‑500kW)
| Parameter | Specification |
|---|---|
| Power Range | 0.75kW – 500kW |
| Efficiency Class | IE3 / IE4 (Premium Efficiency) |
| Poles | 2 / 4 / 6 / 8 poles |
| Voltage | 220V / 380V / 400V / 415V / 460V / 690V (custom) |
| Frequency | 50Hz / 60Hz (dual frequency optional) |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) / IP55 / IP65 |
| Mounting | B3 (foot), B5 (flange), B14 (face), B35 (combined) |
| Frame Size | 63 – 450 (IEC standard) |
| Insulation Class | F / H (155°C / 180°C) |
| Duty Cycle | S1 (continuous) / S3 (intermittent) |
| Cooling | IC411 (self-cooled) / IC416 (forced cooling) |
| Ambient Temperature | -20°C ~ +40°C (standard) |
| Altitude | ≤1000m (standard, higher on request) |
| Warranty | 1.5 years |
Micro & Specialty Motors (DC, Geared, Vibration, Coreless, Brushless, Stepper)
GTFI offers a comprehensive range of miniature motors for consumer electronics, robotics, medical devices, and automation. All models support custom voltage, shaft, and lead wire options.

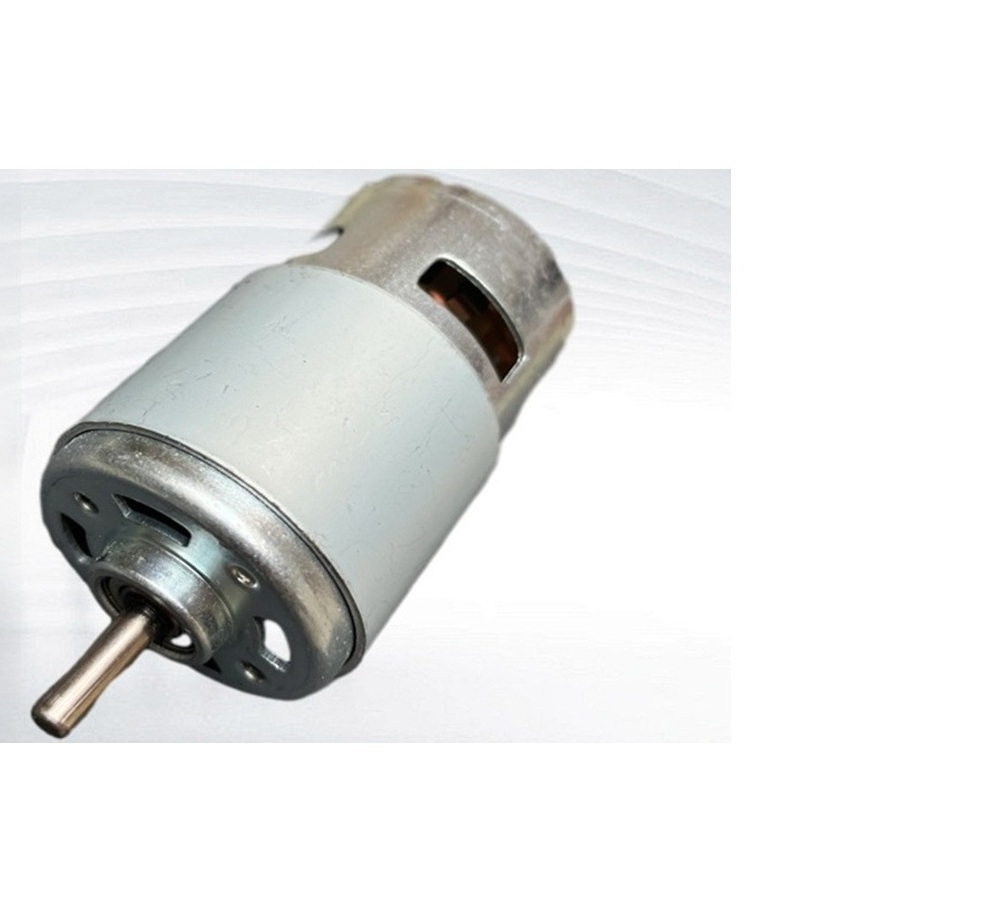

1. DC Brushed Motors (Toys, Home Appliances, Gifts) (Limited space, more models please contact customer service)
| Model Series | Voltage (V) | Shaft Dia./Length | Typical Applications | Features |
|---|---|---|---|---|
| FF-130, FF-030 | 3 (toys), 6, 12 | 1.0/1.5mm, length 3~8mm | Electric toothbrushes, toy cars, massagers | Low voltage start, cost‑effective |
| 130, 280, 380, 260, 030, 050 | 6, 12 (EU/US mainstream), 24V (industrial) | 1.0/1.5/2.0mm optional | Fans, beauty devices, small pumps, gifts | CE/RoHS, high volume export |
| FF-380, FF-280 | 6, 12 | 2.0mm optional | Small appliances, massage tools | Higher torque, durable |
2. Geared Motors (Smart Locks, Robots, Automation) (Limited space, more models please contact customer service)
| Model Series | Voltage (V) | Gear Ratio | Output Torque | Shaft Type | Applications |
|---|---|---|---|---|---|
| GM12-N20, GM20-N30 | 3, 6, 12 | 5:1 ~ 1000:1 | 50g·cm ~ 15kg·cm | Round, D‑cut, flat (D‑cut preferred for EU) | Smart locks, auto doors, robot joints |
| GM25-370, GM37-520 | 12, 24 | 10:1, 30:1, 50:1, 100:1, 200:1, 1000:1 | 50g·cm ~ 15kg·cm | Round, D‑cut, flat | Conveyor belts, precision instruments, electric models |
3. Vibration Motors (Wearables, Beauty Devices, Massagers) (Limited space, more models please contact customer service)
| Type | Model | Voltage (V) | Current | Dimensions (mm) | Applications |
|---|---|---|---|---|---|
| Cylindrical | 1020, 1030, 1234, 0827 | 3.7 (Li‑ion mainstream), 3, 6 | — | Ø10~12, length 20~34 | Smartphones, massagers, wearables |
| Coin (flat) | 3020, 3424, 4020, 4624 | 3.7 | 60~120mA | Ø30~46, thickness 2.0~2.4 | Smart bands, eye masks, beauty devices |
4. Coreless Motors (Drones, UAV, Medical, High‑end Beauty) (Limited space, more models please contact customer service)
| Diameter (mm) | Voltage (V) | Key Features | Applications |
|---|---|---|---|
| 6, 8, 10, 12, 16 | 3.7, 7.4, 12 | High speed, low power consumption, no cogging | Drones, UAVs, beauty devices, medical micropumps |
| Custom sizes | Custom | EU/US high‑end demand, with driver board | Precision instruments, robotics |
5. Brushless Micro Motors (Appliances, Fans, Pumps – EU preferred) (Limited space, more models please contact customer service)
| Model Series | Voltage (V) | Key Features | Applications |
|---|---|---|---|
| 1204, 1404, 1806, 2418 | 12, 24 (with driver board) | High efficiency, long life, low noise, CE/RoHS | Small fans, pumps, air purifiers, power tools |

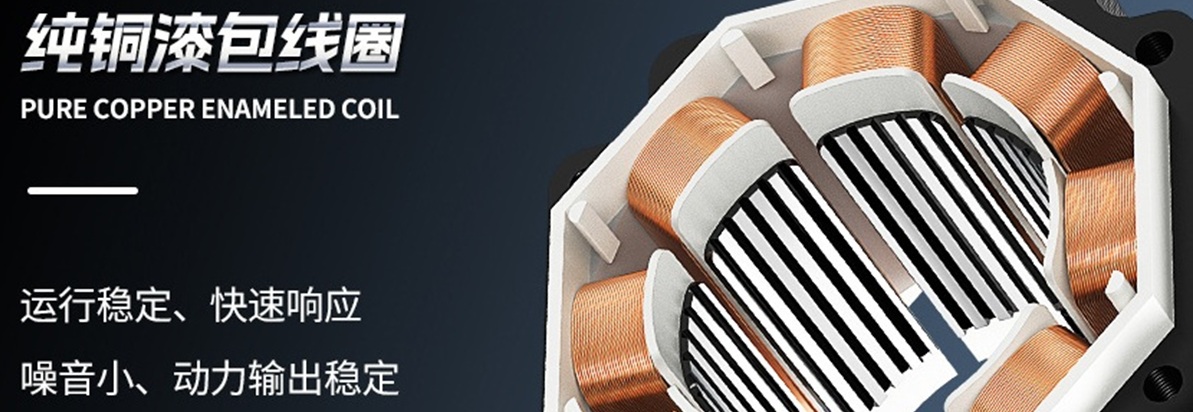

| Structure (screw, stator, rotor, PCB) | 12/24 | Epoxy resin rotor (moisture/heat resistant), pure copper coils (stable, quiet) | Smart home, personal care (hair dryers, brushes) |
6. Stepper Motors (CNC, 3D Printers, Automation) (Limited space, more models please contact customer service)
| Model | Size (mm) | Holding Torque (N·m) | Rated Voltage (V) | Rated Current (A) | Weight (g) | Applications |
|---|---|---|---|---|---|---|
| 42HS23 | 42×23 | 0.12 | 4.5 | 1.0 | 200 | 3D printers, laser engraving |
| 42HS34 | 42×34 | 0.28 | 3.1 | 1.3 | 214 | CNC machines, assembly lines |
| 42HS40 | 42×40 | 0.40 | 2.8 | 1.5 | 291 | Robot joints, pan‑tilts |
| 42HS48 | 42×48 | 0.52 | 3.24 | 1.8 | 291 | Test fixtures, small CNC |
| 42HS60 | 42×60 | 0.70 | 4.2 | 1.7 | 485 | Packaging, conveyors, precision positioning |

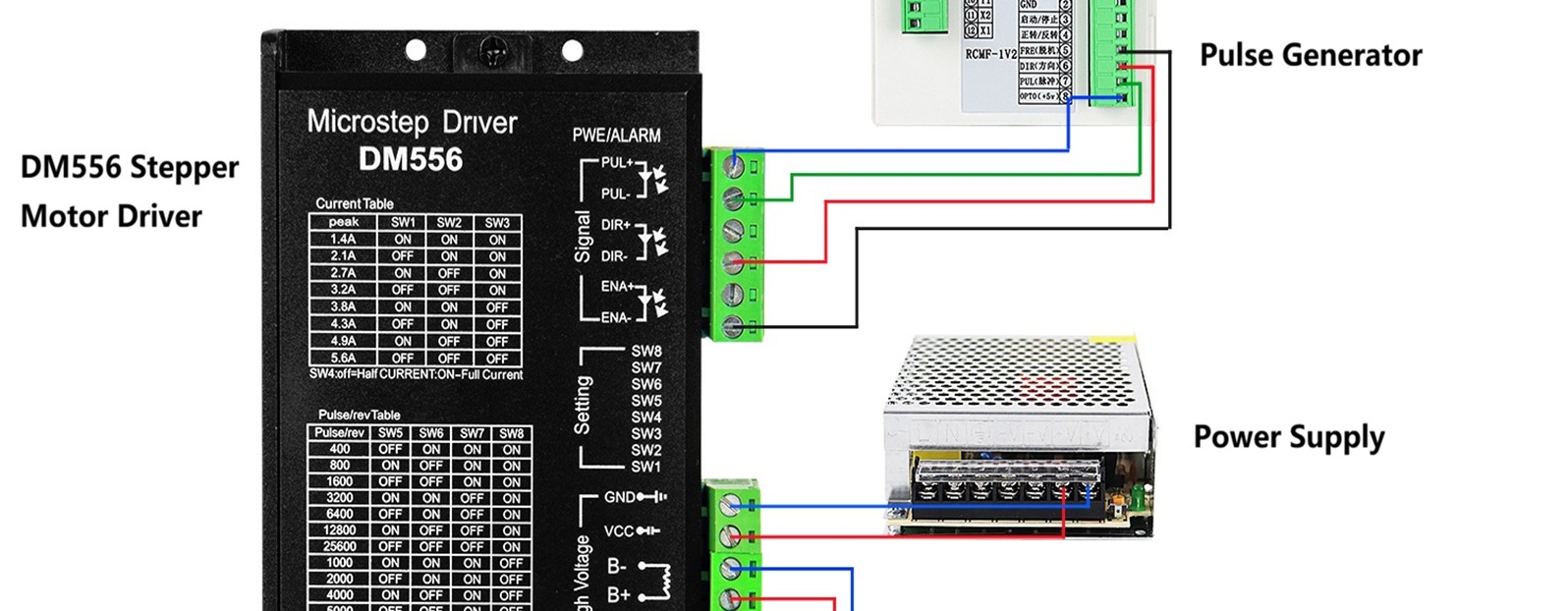

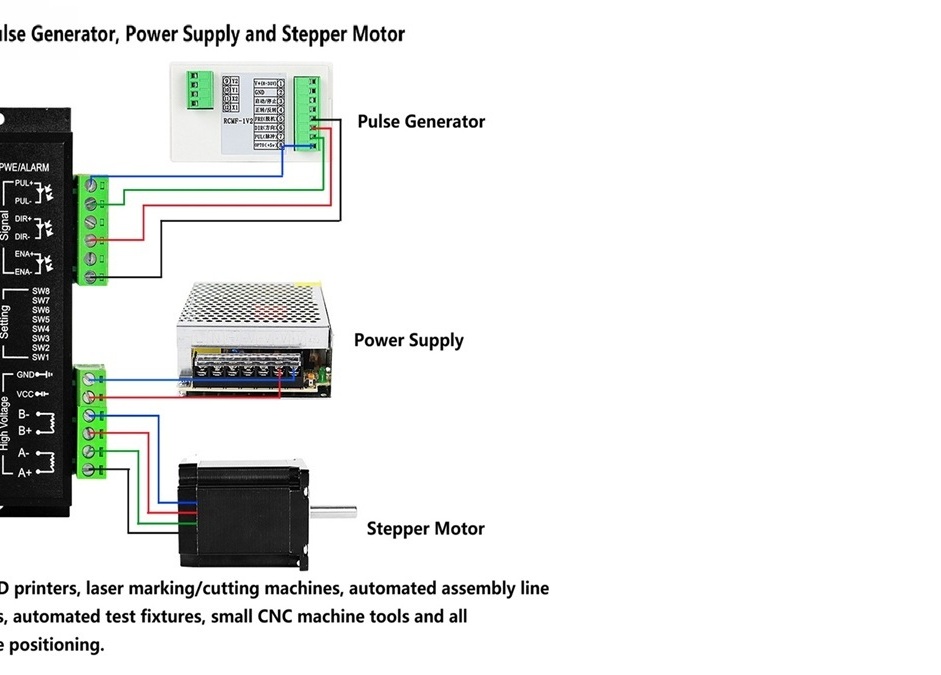

Recommended driver: DM556 microstep driver, with pulse generator and power supply.
Common Export Standards (for all motor types)
| Item | Requirement / Preference |
|---|---|
| Certifications | RoHS (EU mandatory), CE, FCC (USA), PSE (Japan) |
| Parameter marking | Voltage, no‑load speed, load current, torque |
| Lead wires | Wire leads, metal terminals, tab terminals (2P plug preferred in EU/US) |
| Housing | Metal (better heat dissipation) or plastic (lightweight), high‑hardness chrome‑plated anti‑rust |
| Special coatings | Triple‑layer high‑density molecular coating (dust‑proof, high‑temp resistant), neodymium magnets for enhanced torque |
Quick Selection Guide
| Application | Recommended Type | Model / Voltage |
|---|---|---|
| Toys / Gifts | DC Brushed | FF130 / FF280, 3~6V |
| Smart Locks / Small vehicles | Geared | N20 / 370 geared, 6~12V |
| Beauty / Massage | Vibration | Coin 3.7V or Cylindrical 1020 |
| Drones / High‑end | Coreless | 8mm / 12mm, 3.7~7.4V |
| Fans / Pumps | Brushless Micro | 1204 / 1404, 12~24V |
| 3D Printing / CNC | Stepper | 42HS series with driver |
